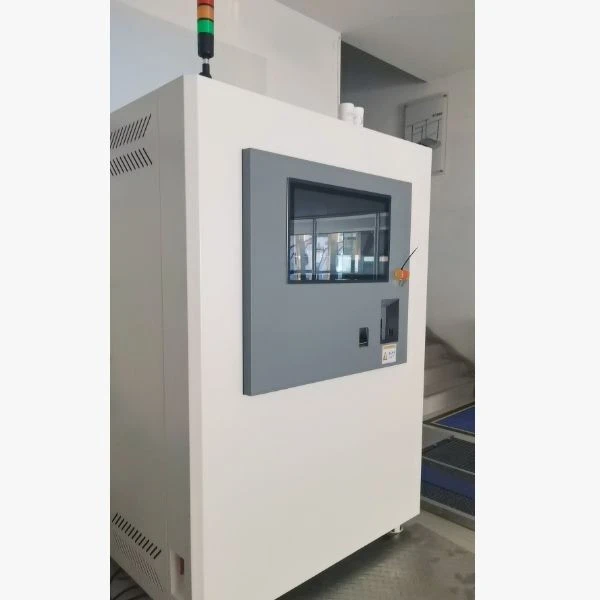

Solder Paste Management Cabinet
The Solder Paste Management Cabinet is an intelligent device specifically designed for solder paste management in the SMT (surface mount technology) industry. It automates the entire solder paste storage, rewarming, and mixing process.
Features
Fully automated processes: Automatic code scanning, automatic refrigeration, solder paste reservation, automatic rewarming, and automatic mixing are all available, reducing manual operations and improving production efficiency and management accuracy.
Precise temperature control: Refrigerated areas typically have multiple temperature probes for real-time monitoring. The SPMS-300 intelligent solder paste storage cabinet, for example, has eight temperature probes, maintaining a temperature range of 0°C-10°C. It also utilizes a closed-loop system with tunneled access for both loading and unloading, minimizing temperature fluctuations.
First-in-first-out management: Control is performed based on the QR code printed on the solder paste, ensuring a first-in-first-out (FIFO) management system. Supports secondary solder paste recycling to minimize waste and ensure quality. Data Traceability: Connects to MES, ERP, and other systems to automatically generate reports, view solder paste in-and-out records, and trace the entire solder paste usage process, including refrigeration time, warming time, mixing time, and material removal time, enabling digital quality management.
Inventory Alert: The intelligent solder paste management system provides early warnings based on the set minimum inventory level. It also issues early warnings when solder paste is nearing its expiration date, facilitating timely replenishment and processing.
Refrigerated area parameters
|
|
Storage channels: Independently drawable design with tiered storage areas. Open and close individually for convenient storage and inventory. Refrigerated capacity: 100/200/300 bottles. Solder paste types: Any type can be stored. Temperature control: 1-10°C (±1.5°C), recommended temperature: 2-8°C. Temperature display: Digital and temperature curve display, real-time monitoring and recording. Feeding method: Continuous feed from the feed port. 7-14 bottles can be loaded into the buffer belt at a time. Infeed and outfeed speed: 5 seconds per bottle for feed/retrieval. Discharge principle: First-in, first-out/production date. Secondary storage: Multiple deposits are supported (configurable) with priority for collection. |
||
|
Independent layer storage cabinet The motor is used to independently control the layered drawers, which can be entered and exited independently and can be manually controlled. |
Upper and lower layer temperature control Independent temperature monitoring on multiple layers to precisely control storage temperature |
Discharging principles First-in-first-out/factory date specified storage location supports multiple storage |
|
Regeneration zone parameters
|
|
Rewarming Capacity: 18 bottles, 27 bottles, 45 bottles Tin Sound Type: Any type. Rewarming Method: Automatic, scheduled. Rewarming Process: Fully automated by a robotic arm. Rewarming Time: Configurable upon request. Temperature Control: 18-28°C, consistent with room temperature. |
||
|
Independent layer storage cabinet (2 layers, 3 layers, 4 layers) It adopts independent control of layered drawing and independent entry and exit, which can be manually controlled. It can be heated up at one time according to the number of work order requirements, and heated up in batches with the minimum interval time to ensure that the heating time is controllable. |
Automatic temperature recovery Automatic reheating of solder paste, manual reheating appointment, and receiving MES work orders to execute reheating: |
System docking Can execute multiple work orders and reheat multiple tin products separately, effectively avoiding manual intervention and error-prone problems |
|
Mixer parameters
|
|
Mixing Capacity: 1-2 cans per batch (automatically balances weights per can) Mixing Process: Automatic Mixing Options: Automatic mixing upon return to temperature or pre-mixing; manual selection for no mixing Mixing Time and Speed: Configurable time and speed as needed. Real-time monitoring and recording. |
|
|
Automatic recording and foolproofing No material will be dispensed without stirring, eliminating the phenomenon of solder paste being used without stirring, and improving the quality of solder paste. |
Customizable mixing parameters Stirring settings are made according to solder paste characteristics to ensure solder paste mixing consistency and improve solder paste quality. |
|
Application Scenarios
Consumer Electronics: The manufacturing of electronic products such as mobile phones and computers places high demands on solder paste management. Solder paste management cabinets ensure solder paste quality and efficiency, guaranteeing product soldering quality.
Semiconductors: Precise solder paste application is crucial in processes such as semiconductor chip packaging. Solder paste management cabinets meet stringent process requirements for solder paste storage, reheating, and mixing.
Automotive Electronics: Automotive electronic products require high reliability. Solder paste management cabinets, through effective solder paste management, help improve soldering stability and quality of automotive electronic components.
