Roller-type Shoe Sole Cleaning Machine
video

Roller-type Shoe Sole Cleaning Machine

The roller-type shoe sole cleaning machine is an automated device with multiple sets of rotating rollers as its core cleaning components. It removes contaminants through friction and scouring between the brushes and the shoe soles. It is widely used in environments with high cleanliness requirements and frequent personnel movement.
Send Inquiry
Product Introduction

The roller-type shoe sole cleaning machine is an automated device with multiple sets of rotating rollers as its core cleaning components. It removes contaminants through friction and scouring between the brushes and the shoe soles. It is widely used in environments with high cleanliness requirements and frequent personnel movement.



3



Product Parameters

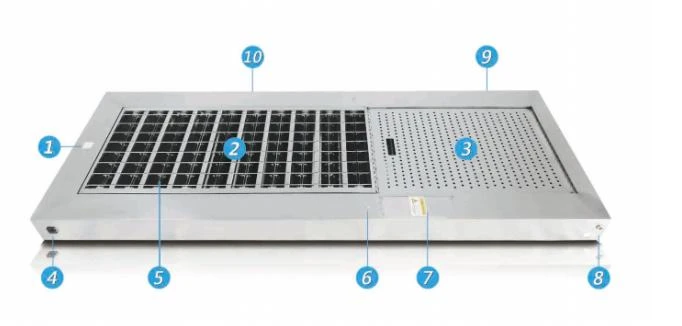

11

❶Infrared sensor

❷Cleaning area

❸Drying area

❹power socket

❺brush

❻Drain button

❼Sewage pump

❽water inlet

❾Drain

❿Maintenance box



Product Model

R1000

R1500

R2000

R2500

R3000



Product size

1000*750*120

1500*750*120

2000*750*120

2500*750*120

3000*750*120



cleaning area

434*514

768*514

1092*514

1740*514

1740*514



Drying area

380*514

546*514

722*514

574*514

1074*514



absorbent sponge

380*500

400*500

700*500

550*500

550*500



Motor power

60W

140W

180W

180W

180W



Water pump power

60W

60W

60W

60W

60W



Operating voltage

110V/220V

110V/220V

110V/220V

110V/220V

110V/220V



Startup method

Infrared sensor

Infrared sensor

Infrared sensor

Infrared sensor

Infrared sensor



Safety protection

Overload/leakage protection

Overload/leakage protection

Overload/leakage protection

Overload/leakage protection

Overload/leakage protection



Main material

SUS304

SUS304

SUS304

SUS304

SUS304



Number of users

<50 person

<100 person

<200 person

<300 person

<350 person



air shower room

1M air shower room

1.5M air shower room

2M air shower room

2.5M air shower room

3M air shower room



Non-standard sizes can be customized





Working Principle



The roller-type shoe sole cleaning machine uses a motor-driven roller brush to clean shoe soles, then uses an absorbent sponge to absorb any remaining water.

Induction Start: When a person steps into the sensing area, the machine automatically starts, eliminating the need for manual operation.

Absorbent Finish: The included absorbent pad squeezes and absorbs any remaining water on the soles, preventing contamination when the person steps out of the machine.

Automatic Stop: After a person leaves the sensing area, the machine automatically stops after a delay of several seconds (usually 3-5 seconds, adjustable), reducing energy consumption.

Drum Water Wash: Utilizes a roller brush for cleaning, offering high speed and powerful cleaning power. It is particularly effective for industrial shoes with deep sole ridges.



Applications



Industrial: Suitable for use in cleanrooms or dust-free workshops in industries such as optoelectronics, semiconductors, integrated circuits, new energy, pharmaceuticals, and food processing, preventing floor contamination and improving product quality.

Commercial: Suitable for installation at the entrances of shopping malls, office buildings, government offices, hospitals, and other facilities, reducing indoor environmental pollution and improving interior quality and aesthetics. Household area: Suitable for installation at the home entrance to keep the indoor floor clean and reduce housework.
