Flexible Couplings CSFR

Torsionally rigid,Backlash-free, Displacements compensate

Special stainless steel laminae, High strength, long service life

All steel components, High strength, Safe and reliable, Can transmit large torque

Awide range ofapplications, Applicable compressors, Shaft drive,pump drive...

Simple installation, Firmly connected, High temperature resistance, Maintenance-free

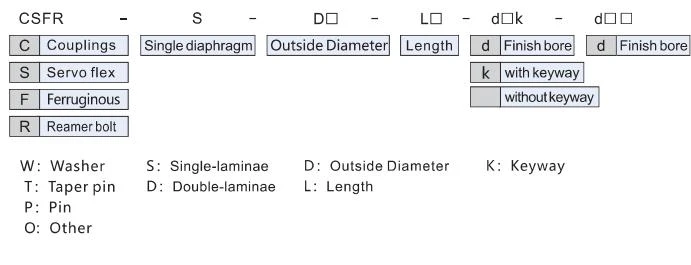

Model Description

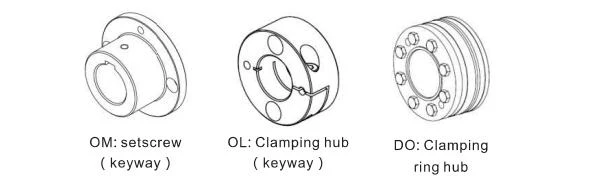

Types of hubs

Torsionally rigid : Can accurately control the rotation of the shaft;

Backlash-free : The diaphragm has high strength and Backlash-free,Suitable for high-precision

Positioning and detection conditions;

High torque: All steel components, High strength, Safe and reliable, Can transmit large torque

Temperature resistance ; Stainless steel laminae and metal shaft sleeve enable CSF Flexible couplings to withstand high temperatures of 200 'C and resist corrosion;

Compensating for misalignment: Twisted rigid membranes can provide both axial, angular, and radial;

Compensating capabilities, with double laminae for stronger Compensating for misalignment;

Surface Treatment :Stainless steel laminae have strong stability, are not easily oxidized, and have corrosion

resistance characteristics:

Metal shaft sleeves are usually treated with blackening on the surface.

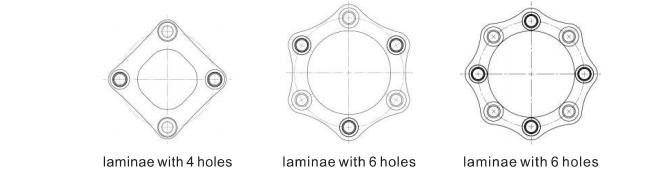

The laminae types

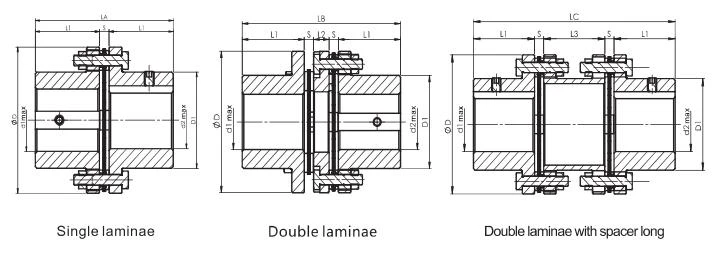

Assemble andlaminae pin types
