Torque Limiter

• Pre adjustable torgue at the factory or on site adjustable torque;
• Suitable for various drive connedtions, such as chain wheel connecion and plum blossom couplings;
• Special friction plates with good wear resistance, Suitable for dry driving and has a long service life;
• All steel components,high strength, safe and reliable, surface phosphaing treatment without maintenance;
• Using high-perforance butterly spring assembly with special fiction plates, high power density;
• Multiple disc spring assembly methods can achieve small space transmission and large torque transmissior;

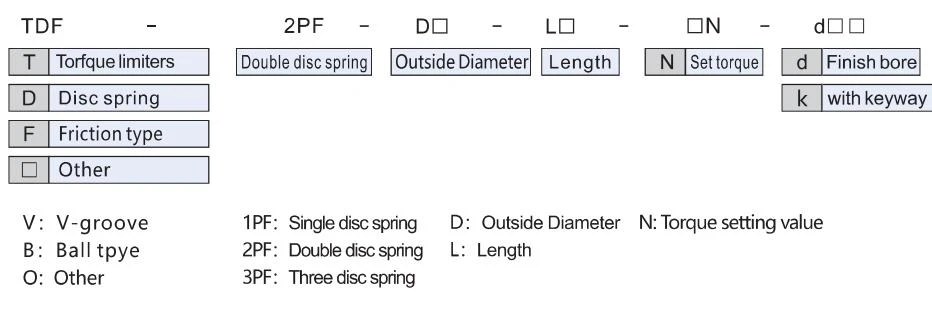

Model Description

Types ofhubs OM: setscrew keyway

Torque Limiters-Friction type TDF Series:Torque Limiters-Friction type summary

Attribute: Friction type has the characteristic of torque maintenance, high power density, moderate cost, and strong universality:

Application: Low speed transmission, can be applied to chain wheel, synchronous belt wheel, conveying machinery, rotating feeding equipment, etc:

Surface treatment: All steel metal shaft sleeves and other components are treated with phosphating and blackening on the surface to effectively resist oxidation;

To ensure the normal use of the torque limiter, the set torque usually needs to exceed 30% of the maximum slip torque;

Freguent or continuous overload slip can exacerbate the wear of the toraue imiter, so it is strongly recommended toequip the torque limiter with a trigger switch or sensor, so that in case of overload slip, the driving power can beimmediately disconnected:

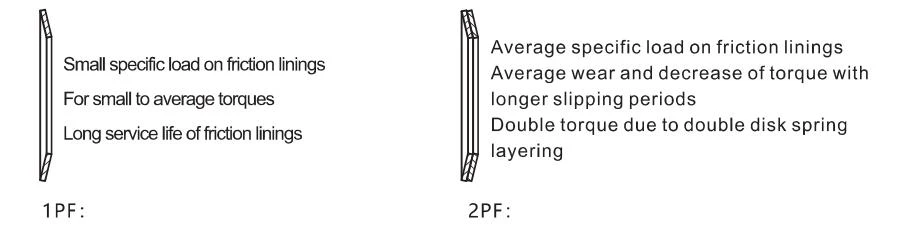

Disc spring layerings

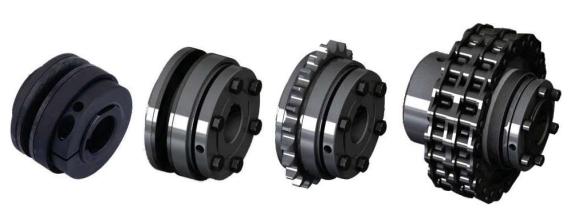

Combination Style
