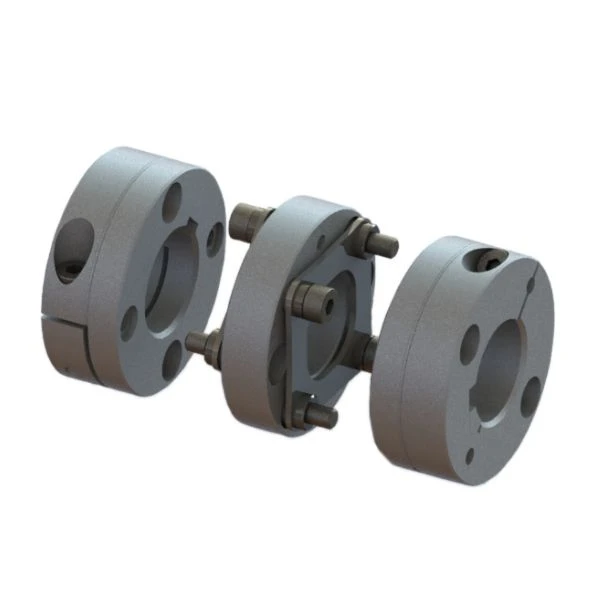

Diaphragm - Type Coupling

All steel, Backlash-free

High accuracy, Torsionally rigid

Single-section or double-section

Compact dimensions, Wass moment ofinertia low

Maintenance-free,Specially designed for servo andstepper motors,suitable for positioning conditions.

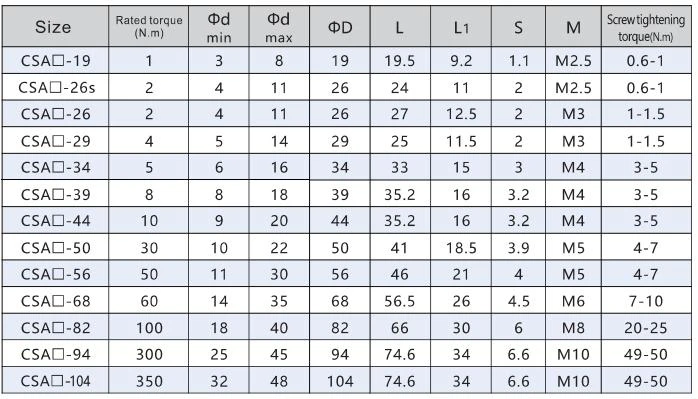

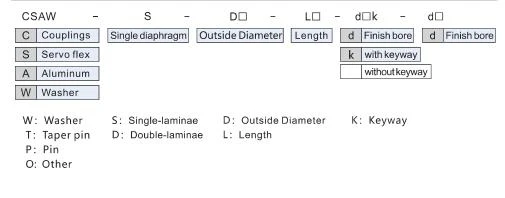

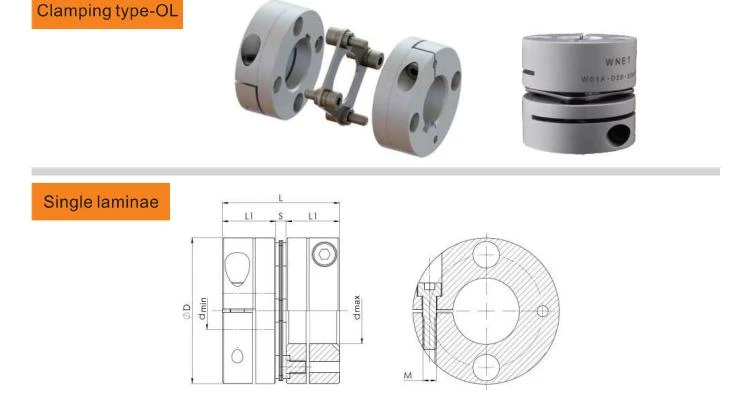

Model Description

Torsionally rigid : Can accurately control the rotation of the shaft;

Backlash-free : The diaphragm has high strength and Backlash-free,Suitable for high-precision positioning anddetection conditions

Low lnertia : Adopting high-strength aluminum alloy and clamping sleeve that fits with the diameter tolerance of theshaft end,it has low inertia characlerislios;

Temperature resistance : Stainless steel laminae and aluminum aloy shaft sleeve enable CSA Flexible couplings to withstand high temperatures of 200 "C and resist corrosion;

Compensating for misalignment: Twisted rigid membranes can provide both axial, angular, and radialCompensating capabilities, with double laminae for stronger Compensating for misalignment;

Surface Treatment : Stainless steel laminae and aluminum alloy shaft sleeves are not easily oxidized and havecorrosion resistance properties, Usually, surface treatment is not required, When customers require it, the shaftsleeve can provide anodized surface treatment.

The laminae types

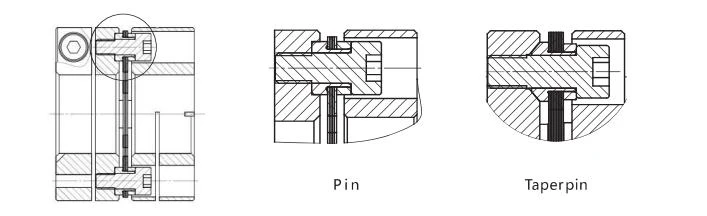

Thelaminae pin types

The displacement ofthe axis

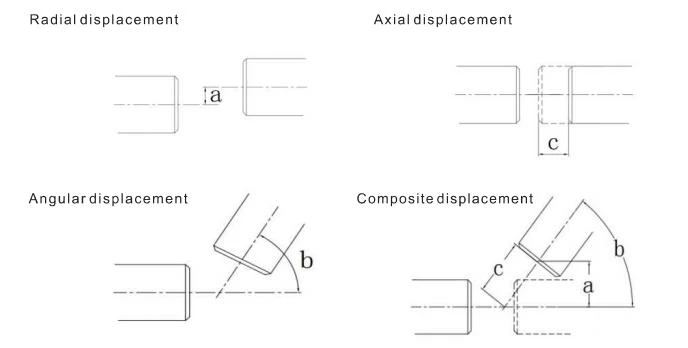

The displacement of the axis includes: Axial displacement, Radial displacement, Angular displacement,The displacement figures may only be used one by one, if they appear simultaneously, they must be limited inproportion. Otherwise, it may lead to vibration, a sharp reduction in lifespan, and a decrease in accuracy!
