Plum Blossom - Shaped Coupling
Strong comection ability, good absorption of impact and vibration
Easy to install, axial insertion, maintenanoe free, and easy to visually inspect
Flexible jaw Couplings CFAR Product features
Backlash-free, small volume, small moment of inertia
Strong comection ability, good absorption of impact and vibration
Easy to install, axial insertion, maintenanoe free, and easy to visually inspect
Polyurethane elastomer with good wear resistance and insulation properties
Elastomers with different hardness options are available, suitable for variousworking conditions

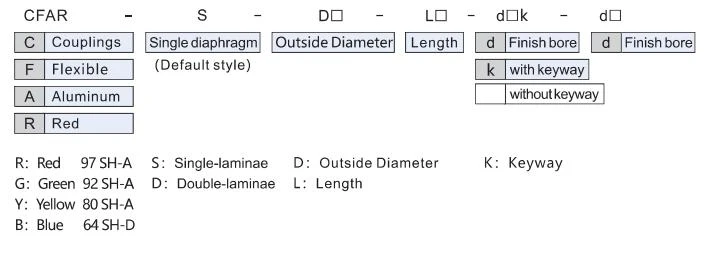

Model Description

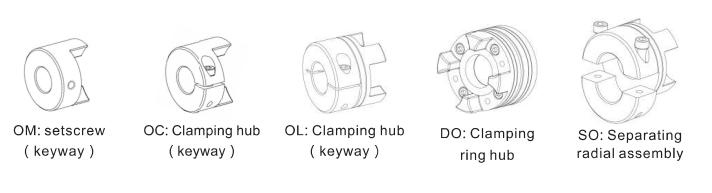

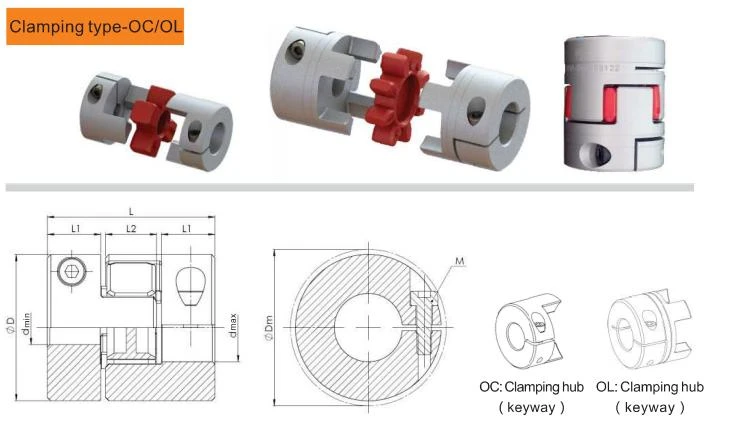

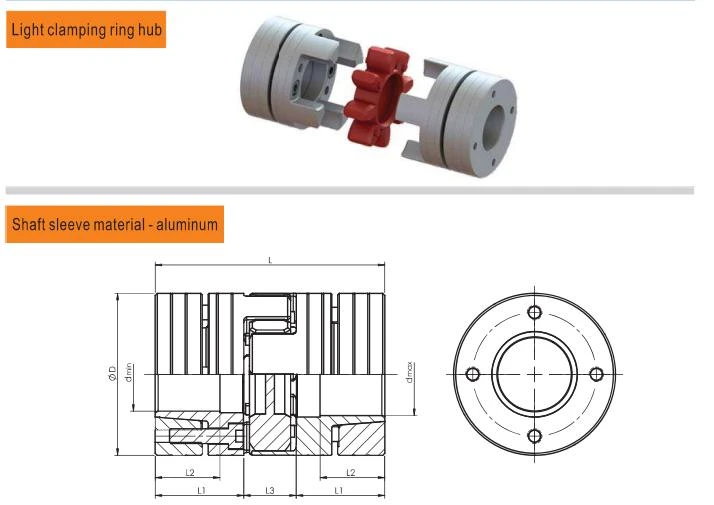

Types of hubs

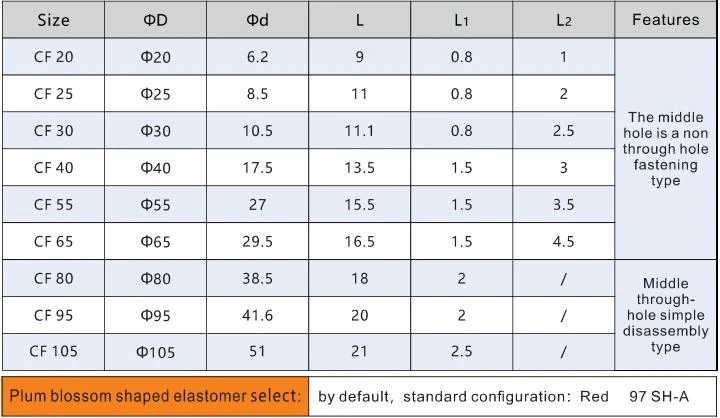

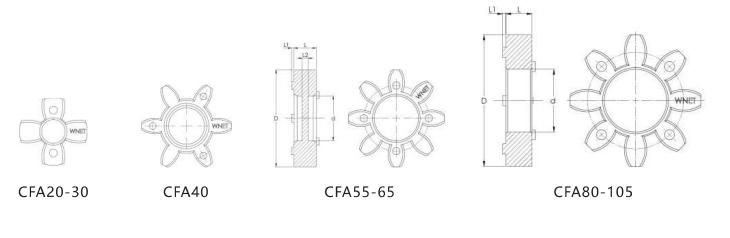

Plum blossom shaped elastomertypes
Plum blossom shaped elastomer features
|
Product color/hardness(Shore hardness)/picture |
Features of Product |
|
Yellow 80 SH-A |
lmport polyurethane TPU with moderate elasticity Permissible instantaneous temperature range -60'C to +90"C Permissible temperature range -50°C to + 80°C Transmission of general machinery Transmission of hydraulic equipment |
|
Green 92 SH-A
|
Import polyurethane TPU with good damping Permissible instantaneous temperature range -50'C to+120 °C Permissible temperature range -40'C to+90 "C Transmission of stepper and servo motors Electronic measurement,transmission of control systems |
|
Red 97 SH-A |
Import polyurethane TPU with high torque, moderate damping Permissible instantaneous temperature range -40°C o+ 120 "C Permissible temperature range -30°C to+90 °C Transmission of stepper and servo motors Main shaft drive, high load transmission |
|
Blue 64 SH-D |
Import polyurethane TPU with high torque, moderate damping, low damping Pemissible instantaneous temperature range -30C to+120C Pemissible temperature range -20fC to+110C Servo and variable frequency motor tansmission Transmission of High Load Sports High torsional rigidity transmission |

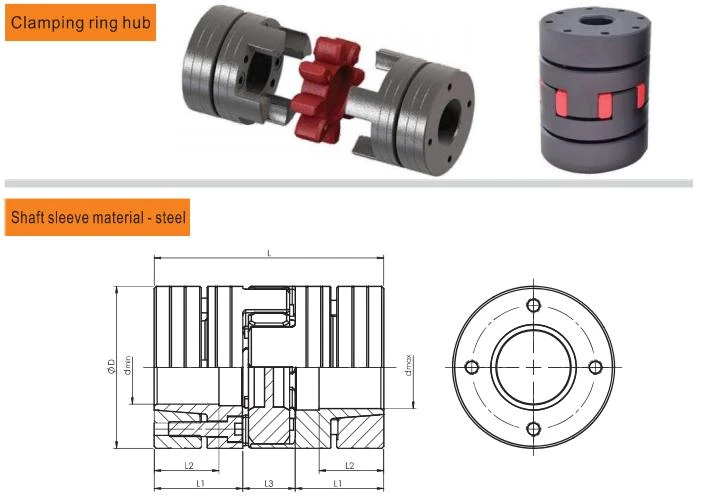

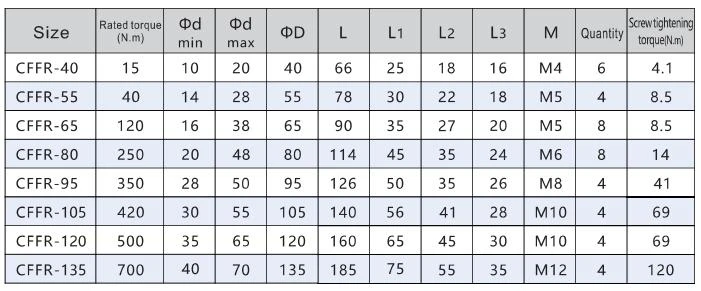

Flexible jaw Couplings CFFR
Flexible jaw Couplings CFAR Precautions
- Before installation, maintenance, and disassembly, please make sure to power off the equipment;
- Protective devices must be installed around the couplings to avoid potential hazards;
- Do not disassemble or modify the couplings. lf you have special requirements, please contact ourcompany for non-standard customization;
- Including but not limited to speed, rated torque, etc;
- Please ensure that the operating conditions are within the technical parameter range of the coupling,
- Before installing the coupling, please make sure to thoroughly clean the stains and oil stains on both shafts and shaft holes;
- When installing the couplings and module, please ensure that the shaft is parallel and well aligned.
- lf necessary, use auxiliary tools or calibration methods for shaft alignment!
